Re: [TCML] Need some advice on 150kva sgtc



Very odd. Might be good to get some actual charging current waveforms, to make sure the reactor is large enough to minimize shoot-through current during the SG dwell time. Otherwise the wound-up reactor will try to keep the gap lit.

You should be able to get away with far less average power. Here is a similiar 5.2m coil, using a 3ph DC resonant charging supply. Typical max operating power is about 25kW:

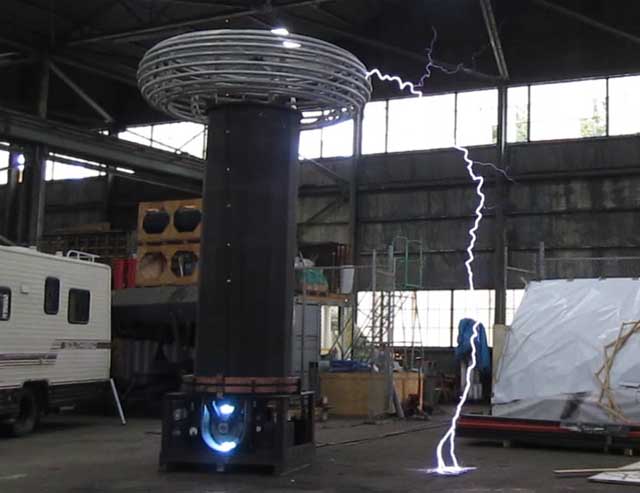

Ground strike:
http://www.lod.org/misc/Images/amsteel-ground-strike-01.jpg

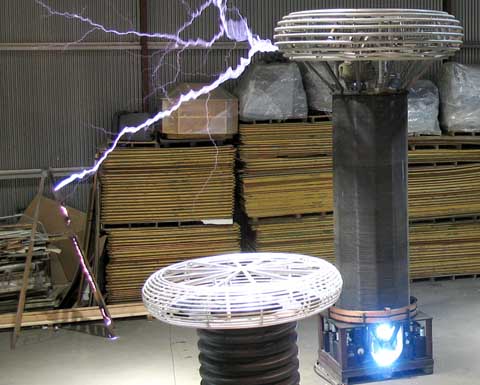

Setting ladder on fire:
http://www.lod.org/misc/Images/120Lladder.jpg

Cheers,
Greg


On 1/11/2015 6:51 AM, tesla-request@xxxxxxxxxx wrote:

Message: 17
Date: Sun, 11 Jan 2015 15:22:18 +0100
From:vam@xxxxxxxxx
To: "Tesla Coil Mailing List"<tesla@xxxxxxxxxx>
Subject: Re: [TCML] Need some advice on 150kva sgtc
Message-ID:
	<b0be8d487620c2d13323517118360673.squirrel@xxxxxxxxxxxxxxxxx>
Content-Type: text/plain;charset=iso-8859-1

Good question. But i didn't "accurately" measure the charging current
prior to fire wheel mode. What i can tell there was no sign of any change
in sparkgap behaviour. No difference in light output/color or sound. It
happened very sudden.


>  When lowering the break rate, the primary current of the supply
>  transformer
>  decreases. The importand question now is: Did you measure an increasing
>  primary current of the supply transformer, just before the ignition of the
>  firewheel?
>  Or does this happen suddenly without any warning, when the critical bps is
>  reached?
